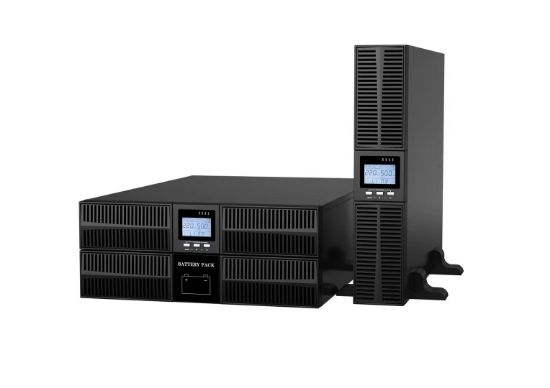

Online UPS 6-10K 11 RT PF1

 Advanced DSP and 3-level technology  Output power factor 1.0  Active power factor correction (APFC), input power factor up to 0.99  High efficiency 95% (up to 98% in ECO mode)  Advanced digital parallel technology  Wide input voltage range (110 ~ 288 Vac) and frequency range (40 ~ 70 Hz)  50 / 60 Hz frequency auto sensing  Two modes of frequency conversion: 50 Hz input / 60 Hz output or 60 Hz input / 50 Hz output  Dual-input design, supporting independent bypass  Flexible battery configuration (settable 16 - 20 pcs batteries)  Digitally controlled charger  High charging current available (Max. 12 A)  Charging voltage and current configured by demands  Linear derating in low voltage input reducing battery discharging times, extending the service life of battery  Intelligent battery management, automatic floating / equalizing charge control, charger dormancy control, increasing battery life by 50%  Ability to switch on the UPS with batteries  Settable delayed start time when mains power is restored, reducing the impact on power grid or generator  Fan speed varies intelligently with temperature, reducing noise and extending its service life  Equipped with self-aging function  Compact internal layout, miniaturized the complete unit for small footprint  LCD+LED display, multi-functional keys operation, friendly human-machine interface  Powerful background software for parameters configuration  Advanced multi-platform communications: RS232, USB, RS485, SNMP and dry contacts communication interfaces  Effective software and hardware protection function, robust self-diagnostic function, and abundant event log for check Available Options  RS232 and smart card slot included  Optional parallel function, battery temperature compensation, SNMP card, USB, RS485 card, dry contacts, EMD, and SMS alarms

Alpha Pro RT Series UPS is the high density version of on-line double-conversion UPS with advanced full-time DSP control technology and input power factor correction, it is featured with output power factor 0.9 which enable to delivering more stable and clean power without interruption for critical equipment. Its Rack/Tower convertible design can be fitted to multiple applications, such as telecommunication, storage systems, medical systems, industrial applications especially ideal for blade severs. For critical business continuity applications requiring long runtimes, Alpha Pro RT（extensible model）can be installed with battery extension packs.
