EV AC Charging Stations
SKU: EV_AC_Charging_Stations

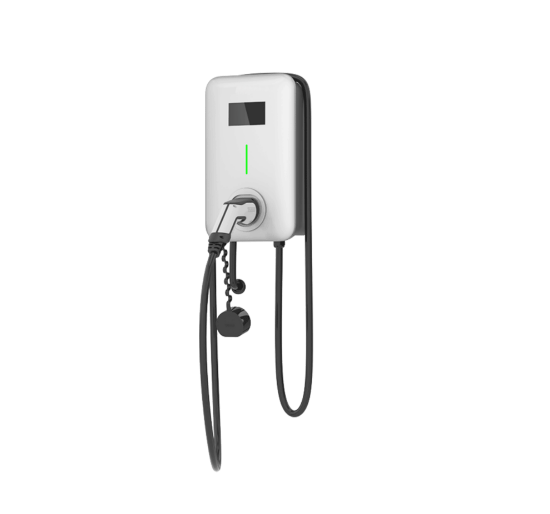

A7, A11, and A22 are the latest AC charging stations for electric vehicles developed by EV Charging Clean Energy Technology Co., Ltd. As a subsidiary of East Group, EV Charging Clean Energy Technology combines East’s 30 years heritage of innovation in the superior charging solutions. A7, A11, and A22 provide tailored, intelligent and networked charging solutions for any business, home or location. The charging stations are future-proof and compatible with every electric vehicle. Built to last plus easy installation and maintenance, the stations offer reliable and hassle-free charging. An effortless charging experience is guaranteed with the smart energy management system.
A7 / A11 / A22 EV Charging Solutions
- Introduction
A7, A11, and A22 are the latest AC charging stations for electric vehicles developed by EV Charging Clean Energy Technology Co., Ltd. As a subsidiary of East Group, EV Charging Clean Energy Technology combines East’s 30 years heritage of innovation in the superior charging solutions.
A7, A11, and A22 provide tailored, intelligent and networked charging solutions for any business, home or location. The charging stations are future-proof and compatible with every electric vehicle. Built to last plus easy installation and maintenance, the stations offer reliable and hassle-free charging. An effortless charging experience is guaranteed with the smart energy management system.
- Application
7kW, 11kW home charging stations perfect for various applications including home charging, multi-residential, workplaces, retail, parking garages, and all public charging.
- General Specifications
Features | Items | Home Charging |
Input | Voltage | 230VAC±20% / 400VAC±20% |
Current | Single phase 32A /
three phase 16A |
Frequency | 50Hz±1% / 60Hz±1% |
Network Type | TN/TT/IT (LN voltage 240V) |
Output | Voltage | 230VAC±20% / 400VAC±20% |
Current | Single phase 32A / three phase 16A |
Power | 7kw / 11kW |
General features | Material | Front PC, Back PC+ASA |
Indicator | LED |
Screen | N/A |
Communica- tion | Standard: Wi-Fi, Bluetooth Optional : PLC, Ethernet |
Emergence stop | Available |
Standby power consumption | <4W |
Connection | Vehicle connection | Cable / socket |
Cable length | Standard: 3.5m Optional : 5m |
Charging method | Plug and play, RFID, APP |
Protocol | OCPP | OCPP1.6J |
Safety | Residual current protection | 30mA VAC + 6mA VDC |
Safety protection | Overvoltage, undervoltage, short circuit, grounding, overtemperature, lightning protection, leakage, overload, relay adhesion detection, residual current protection, comprehensive surge protection, continuous monitoring of protective ground |
Certifications | CE, RoHS |
General design | Weight | Cable version ≤5kg (cable and pole not include), Socket version ≤4kg |
IP rating | IP55 |
Operating environment | Installation | Wall / pole-mounting |
Temperature | -40℃~60℃ |
Humidity | 5%~95% |
Altitude | ≤2000m |
